| Model No. | WH7001 |
| Output | -1xUSB-C 5G -2xUSB-A 5G -1x RJ45 1000M -1x HDMI 4K/60HZ -1x USB-C HOST PD 9OW -2x USB-C PD 45W supported |
| Material | Plastic |

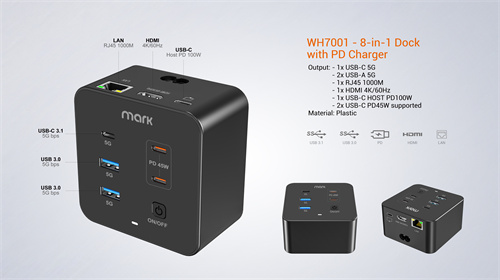

Model No. WH7001
8-in-1 USB C Dock with 168W PD Charger
Description
Instant Expansion with comprehensive functional ports:
- 2xUSB A 3.0 5G Port--(Transfer Speed 5Gbps)
- 1xUSB C 3.1 5G Port(Transfer Speed 5Gbps)
- 1x PD Charging(100W)
- 2x USB C Charging 45W
- 1x 4K/60Hz HDMI
- 1x RJ45(1000Mpbs)
Connections:
- 2 x USB-A: for e.g. external hard drive, USB stick, mouse, keyboard, printer
- 1x USB C 3.1: for e.g. external hard drive, USB stick, mouse, keyboard, printer
- 1 x PD Charger: for e.g. Notebooks, Laptops and tablets
- 2xUSB C Charging 45W: for e.g. Mobile Phone and tablets
- 1 x HDMI: for connection to an e.g. monitor, TV or projector
- 1 x LAN/Ethernet: for e.g. cabled Internet / network connections
- 【Charging and Data Transfer】This 8 in 1 USB Hub instantly add 3 USB ports extension to your notebook, desktop, smart TV or gaming host. 2 Blue USB ports are USB 3.0 5G data ports. Plug and Play, Hot-swappable, syncing data transfer speeds up to 5Gbps. One PD charger output interface with 100W fast charging. Two USB C smart fast-charging ports can automatically detect your device’s fast-charging protocol and charge your phone to over 50% in 30 minutes at speeds of up to 45 Watts.
- The quick charging port can automatically detects and delivers the optimal charging current to compatible devices, includes Apple and Android phones and tablets as well as cameras, consoles and more.
Note: To fulfill quick charging (The RED port), please make sure
1. Your devices support quick charging protocol.
2. Connect the hub with enclosed AC power cord (in the box).
- 2 USB3.0 5G Data Ports
USB 3.0 Hub supports super-fast data transfer up to 5Gbps- 10X faster than USB 2.0 (480 Mbps), which allows you to transfer HD movies or files in seconds.
※ Backward compatible with USB 2.0, 1.1.
※ Data Ports also be able to perform normal charging when needed.
- Crystal-clear 4K HDMI: make your life more colorful - mirror or extend your screen with the USB C adapter's HDMI port and directly stream 4K UHD or full HD 1080P video to HDTV, monitors, or projectors for a cinema-like visual feast. maximum resolution of HDMI output is 4K@60Hz.
- 1 gigabit ethernet port gives access to super fast network speed, backward compatible with 10/100 ethernet.
- 【Exquisite Appearance】The USB hub with PD charger is stylish and durable. The on/off switch also includes an LED light do dedicate the current working status.
- 【A great traveling companion】
It is securely protected by its solid body, easier to carry. It is the best choice for your life and work office.
【Wide Compatibility 】
- Broad Compatibility USB Splitter: Compatible with Windows 2003 / XP / Vista / Win 7 / Win 8 / Win 10, Mac OS, Linux 9 and above, backward compatible with USB2.0 / 1.1 connections.
Product Feature
|
Product Size(LxWxH) |
83x83x48mm |
|
Weight |
380g |
|
Chipset |
LT8711UXD+RTL8153+RM1211 |
|
Cable Length |
80cm |
|
Operating voltage / current consumption |
21 V max. 8 Amp |
|
Compatibility |
USB C port |
|
System requirements |
Windows 11 /10 /8/7 Mac OS, X, 10.x(and above) Linux |
|
USB specification |
USB 3.1 5Gbps |
|
Operating Temperature |
0℃ to 40℃(35°F to 100°F) |
|
Operating Humidity |
20% RH to 80% RH |
How to Connect
Connect the adapter directly to your computer.
Connect your USB devices to any USB ports.
Connect your USB C devices to USB C Data Port.
Connect your mobile devices to RED USB C ports for quick charging.
Easy to use and carry, hot swap supportable.
No extra driver required.
Note:
Devices that do not support quick charge protocol can only perform normal charging.
Two USB C charging ports DO NOT support data transfer.
Package content:
1 x 8-IN-1 USB C Dock
1xUSB C cable(60cm)
1 x AC Power Cord(1.5m)
1 x User Manual
