Model No.	WH7343
Input	USB-C
Output	-1x DisplayPort(4K/30HZ) -1xVGA(1920x1080P/60HZ) -1x USB 2.0A/F(480Mbps） -1x PD Charging(20V/5A,100W) -1x SD 3.0 -1x HDMI(4K/30HZ)-2x USB 3.0A/F(5Gbps -1x Gigabit Ethernet -1x Micro SD 3.0 -1x 3.5mm Audio/Mic

Model No: WH7343

11 in 1 Type-C Docking Station

2xUSB3.0,1xUSB2.0,1x4KHDMI,1xVG

A, 1x DisplayPort, 1x Gigabit, 1xPD Charging, 1xMicro SD, 1xSD, 1x Audio/Mic

Description

Instant Expansion with comprehensive functional ports:
-> 2xUSB 3.0 port--(Transfer Speed up to 5Gbps)

-> 1xUSB 2.0 port--(Transfer Speed 480Mbps)
-> 1x4K HDMI--(max. 4K/30 Hz)

-> 1xVGA--(max. 1920 x 1200/60Hz)

-> 1xDisplayPort--(max. 4K/30 Hz)

-> 1x Gigabit--(max. 1000Mbps, connect notebook to the Internet / LAN)

-> 1x PD Charging--(20V/5A, 100W)

-> 1x Micro SD--(3.0, 104Mbps)

-> 1x SD--(3.0, 104Mbps)

-> 1x Audio/Mic--(3.5mm)

Note: The 2 charts below list the resolutions of the three video ports

under SST and MST mode

Under SST Mode
	VGA	HDMI	DP
Single Port Connected	1080p/60Hz	NC	NC
	NC	4K/30HZ	NC
	NC	NC	4K/30HZ
Dual Ports Connected	1080P/60HZ	1080P/60HZ	NC
	1080P/60HZ	NC	1080P/60HZ
	NC	4K/30HZ	4K/30HZ
Triple Ports Connected	1080p/60Hz	1080p/60Hz	1080p/60Hz

Under MST Mode
	VGA	HDMI	DP
Single Port Connected	1080p/60Hz	NC	NC
	NC	4K/30HZ	NC
	NC	NC	4K/30HZ
Dual Ports Connected	1080P/60HZ	1080P/60HZ	NC
	1080P/60HZ	NC	1080P/60HZ
	NC	1080P/60HZ	1080P/60HZ
Triple Ports Connected	720p/60Hz	720p/60Hz	720p/60Hz

· Supported devices(partial): 2016/2017/2018 MacBook Pro, 2015/2016/2017 MacBook, ChromeBook, ASUS Transformer 3 Pro, Dell XPS 12 9365 and newer, HP Elite X2, Spectre x360 13, 15, Pro Convertible, Huawei Matebook, Lenovo IdeaPad 720s, ThinkPad T470, T570, X1 Yoga, 720, 920, Microsoft Surface Book 2 and Pro, Razer Blade Stealth, Samsung Galaxy Tab Pro S and more USB-C devices with Power Delivery protocol

· Features 2 USB 3.0 ports and Type-C pass-through charging port, 3 port USB3.0 data transfer speed reach up to 5Gbps. 1-port USB2.0 allow you connect various appliances like keyboards, mouse, USB ﬂash drives, etc. to your type C devices

· 2 USB3.0 ports and 1 USB2.0 port support BC 1.2 charging function, with an auto switching mode

· Crystal-clear 4K HDMI Output: make your life more colorful - mirror or extend your screen with the USB C adapter's HDMI port and directly stream 4K UHD or full HD 1080P video to HDTV, monitors, or projectors for a cinema-like visual feast. When the HDMI, DisplayPort and VGA output ports work simultaneously, maximum resolution of 3 ports is 1080P.

· SD & Micro SD can be read simultaneously

Supported cards:

SD Slot: SD, SDXC, SDHC,

Micro SD Slot: Micro SD(TransFlash), Micro SDHC

· 1 gigabit ethernet port gives access to super fast network speed, backward compatible with 10/100 ethernet.

· Quickly charge your Type-C laptop while simultaneously using other ports.

· Brushed aluminum finish complements your Apple accessories for a timeless and modern desk set up.

· Supports System: Macbook (USB Type-C) OS X system(Mac OS doesn’t support MST), Chromebook Pixel, Windows 10/8.1/8/7

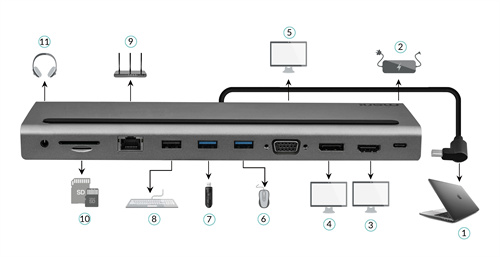

How to Connect

Connect the adapter directly to your computer.

Connect your USB devices to any of the USB ports.

1xHDMI Port - Transmits high-definition audio and video from computer or tablet to HDMI display for streaming and gaming with resolution up to full 4K@30Hz, also supports 1080p, 720p, 480p and other.

Easy to use and carry, hot swap supportable.

No extra driver required.

Product Feature

1: Chipset VL102/VM3332/VL817/GL3224/HS100B/RTL8153B

2: Material Aluminium+ABS

3: Cable Length 40cm

4: Weight 205±5g

5: Operating Temperature: 0℃ to 40℃(35°F to 100°F)

6: Operating Humidity: 20% RH to 80% RH

Package content:

1x 11 in 1 USB Type-C Multi-Port Hub

1 x Manual
