Model No: WH7365DC

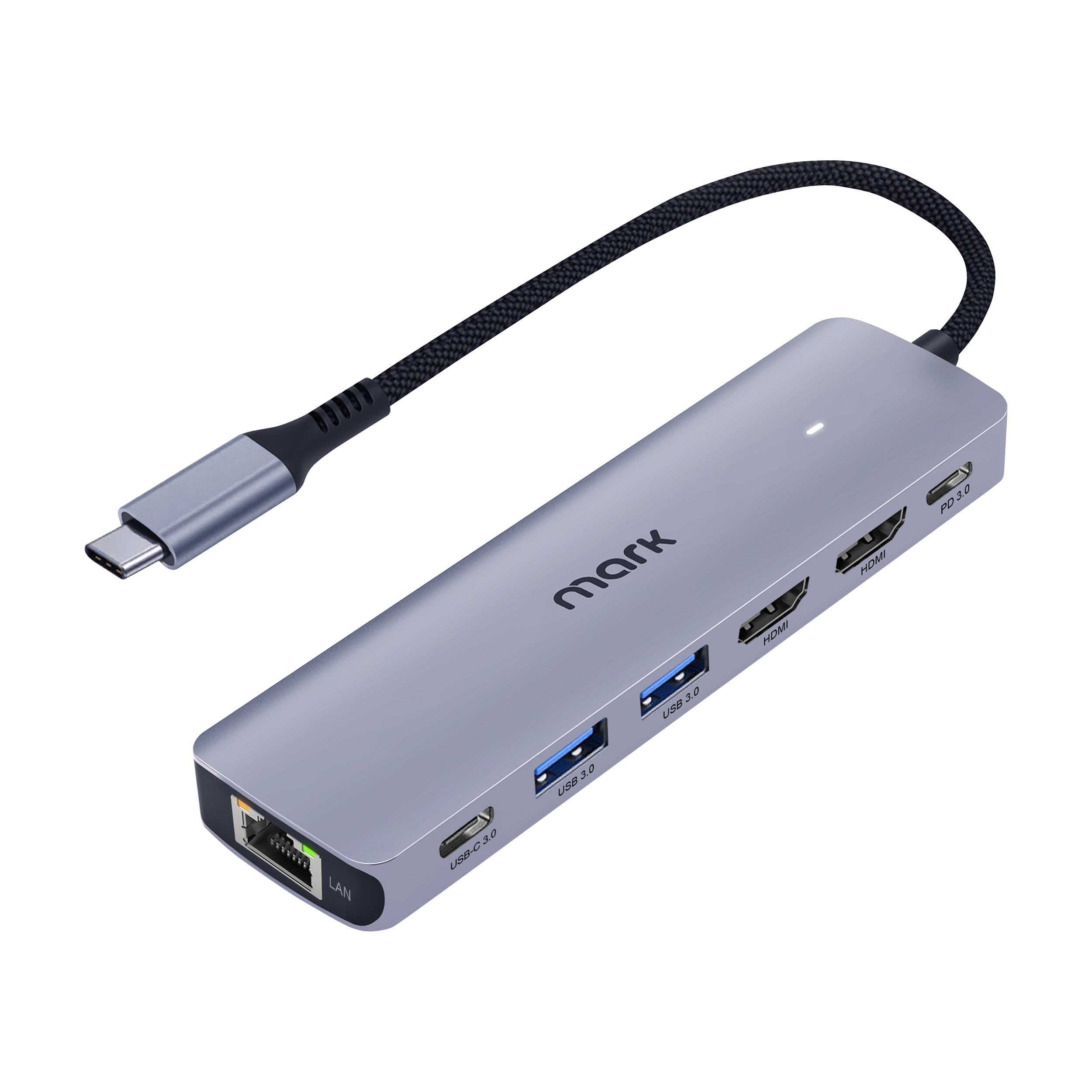

7 in 1 USB C 3.2 Hub
2x USB3.0, 1xUSB C 3.1, 2x 4K@60Hz HDMI, 1x RJ45 Gigabit, 1x PD3.0
Description
Instant Expansion with comprehensive functional ports:
-> 2xUSB 3.0 port--(Transfer Speed up to 5Gbps)
-> 1xUSB 3.1 port--(Transfer Speed up to 5Gbps)
-> 1xPD charging port--(20V/5A, 100W)
-> 2x4K HDMI--(max. 4K/60 Hz)
-> 1x Gigabit--(max. 1000Mbps, connect notebook to the Internet / LAN)
Connections:
- 2 x USB-A: for e.g. external hard drive, USB stick, mouse, keyboard, printer
- 1x USB-C Data: for e.g. external hard drive, USB stick, mouse, keyboard, printer
- 1 x USB-C power: for e.g. PD charger, PD power supply unit, PD power pack
- 2 x HDM: for connection to an e.g. monitor, TV or projector
- 1 x LAN/Ethernet: for e.g. cabled Internet / network connections
Note: The 2 charts below list the resolutions of the 2 video ports
under SST and MST mode
|
Under SST Mode |
||
|
|
HDMI |
HDMI |
|
Single Port Connected |
4K/60HZ |
4K/60HZ |
|
Dual Ports Connected |
4K/60HZ |
4K/60HZ |
|
Under MST Mode |
||
|
|
HDMI |
HDMI |
|
Single Port Connected |
4K/60HZ |
4K/60HZ |
|
Dual Ports Connected |
4K/60HZ |
4K/60HZ |
· This USB C Hub plug in and unlock ultimate convenience.Provides a stable connection and increases the productivity of your device by expanding the female USB C port to multiple possibilities of connectivity. Keep your laptop charging while still providing power to each external device attached. Extensive compatibility meets every need of almost all USB C devices.
· Features 2 USB 3.0 ports, 1 USB C 3.1 Port and Type-C pass-through charging port, 2 port USB A and 1 USB C 3.1 Port data transfer speed reach up to 5Gbps. 3-ports USB allow you connect various appliances like keyboards, mouse, USB flash drives, etc. to your type C devices.
【HDMI 4K High Resolution】 HDMI supports up to 4K resolution video at 60Hz(4096X2160) and 1920x1080 (1080p) at 60Hz. Delivering crystal clear, high quality video and audio. Perfect for presentations, movie nights and more.
· 1 Gigabit Ethernet port gives access to super fast network speed, backward compatible with 10/100 Ethernet.
· Quickly charge your Type-C laptop while simultaneously using other USB ports.
· Extremely compact and slim body, this USB C Hub would be an ideal for everyday carrying, commuting and travelling.
· BC 1.2 charging function supported, with an auto switching mode.
· LED light indicates successful connection.
· Supports System: MacBook (USB Type-C) OS X system, Chromebook Pixel, Windows 10/8.1/8/7
How to Connect
• Switch on your computer and boot the system.
• Connect the product to a free USB port on your computer.
• You do not have to install drivers, the computer will automatically
recognize the product.
• If necessary, follow the instructions for your operating system.
• In order to use your devices, plug them into the product one after
the other.
Product Feature
|
Product Size |
115*34*12.5mm |
|
|
Weight |
65±5g |
|
|
Chipset |
VL102+VMM6200+RM1211+RTL8153B |
|
|
Cable Length |
15cm |
|
|
Operating voltage / current consumption |
5–20 V max. 5 A |
|
|
Compatibility |
USB C port |
|
|
System requirements |
Windows 11 /10 /8/7 Mac OS 10.8 ≥ |
|
|
USB specification |
USB 3.2 Gen1 |
|
|
Operating Temperature |
0℃ to 40℃(35°F to 100°F) |
|
|
Operating Humidity |
20% RH to 80% RH |
|
Package content:
1x 7 in 1 USB C 3.2 Hub
1 x Manual
