Model No. WH7704

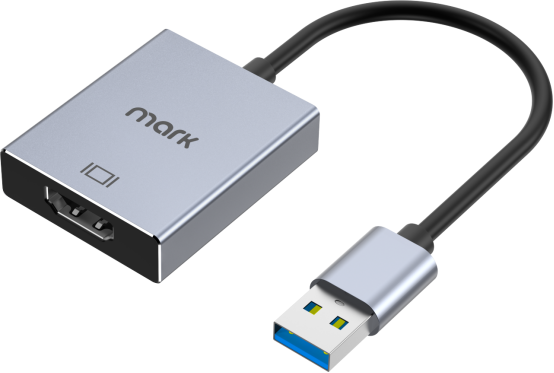

USB3.0 to HDMI Adapter
Description
- 【USB to HDMI Adapter】Ultra Fast USB 3.0 port and built-in with premium quality chip for stable performance and long life, equal to an external graphics card to deliver smooth high definition video to your HDTV/ projector or monitor. Support Windows 11, Windows 10, Windows 8.1, Windows 8, Windows 7, Windows XP.(Note: Linux/Vista/Chrome/Firestick are not supported).
- 【1080P FULL HD】The high speed USB 3.0 to HDMI adapter cable provides up to 1920*1080 resolution images to the display. 【Please Note】If your main screen display resolution is set higher than 1920 * 1080, the expansion screen will not be displayed after connecting the device. In this condition, please set the main screen resolution to 1920 * 1080 can be used normally. And if your USB is version 2.0 or your receiving display device cannot support 1920*1080 resolution, the output resolution can only reach 800*600.

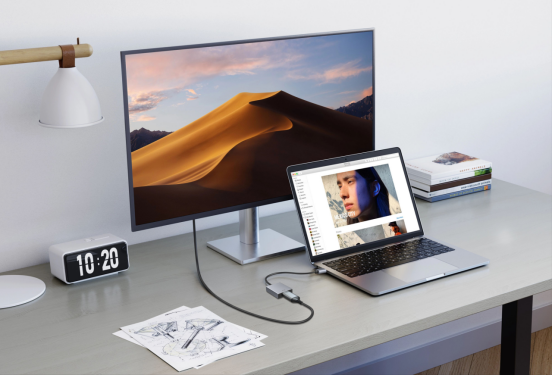

- 【Mirror and Extend Mode】 This USB to HDMI converter have extend mode let your laptop/PC for visibility of multiple tasks at the same time; Mirror mode gives your laptop/PC to a large screen for a visual enjoyment.Ideal for Simultaneous implementation of many tasks, video conference, corporate training, etc. Use the "WIN+P" shortcut keys to switch mirror and extend mode in Windows system.
- 【About Driver Installation】The USB to HDMI Adapter requires the driver installation. Please don't worry, there is a flash in the adapter with driver. Just connect the device to the computer，then go to "my computer", the adapter appear as a USB flash, just like "CD Rom", double click it, the OS will manually install the driver and then restart the computer can be used. (Note: Please close the anti-virus software before installing the driver.)
How to connect

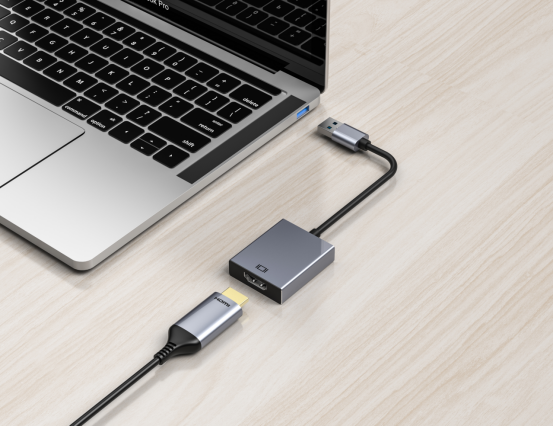

- Directly connect the adapter to the host device
- A HDMI cable is required
- Some USB-C/Thunderbolt 3 hosts only support 1 external display
Product Feature
|
Product Size |
46 x 38 x 13mm |
|
Weight |
33g |
|
Chipset |
MS9132 |
|
Cable Length |
15cm |
|
Compatibility |
USB3.0 A port |
|
Operating voltage / current consumption |
5V max. 900mA |
|
System requirements |
Windows 11 /10 /8/7 Mac OS 10.8 ≥ |
|
USB specification |
USB 3.2 Gen1 |
|
Operating Temperature |
0℃ to 40℃(35°F to 100°F) |
|
Operating Humidity |
20% RH to 80% RH |
Package content
1x USB3.0 to HDMI Adapter
1x user manual
