| Model No. | WH5003 |
| Product Name | Foldable Laptop Stand |
| Product Size | 240x 229x 50.5mm |
| Weight | 850G |
| Color | Silver, Black and Gray optional |
Model No: WH5003
Collapsible Notebook Stand Hub
Introduction

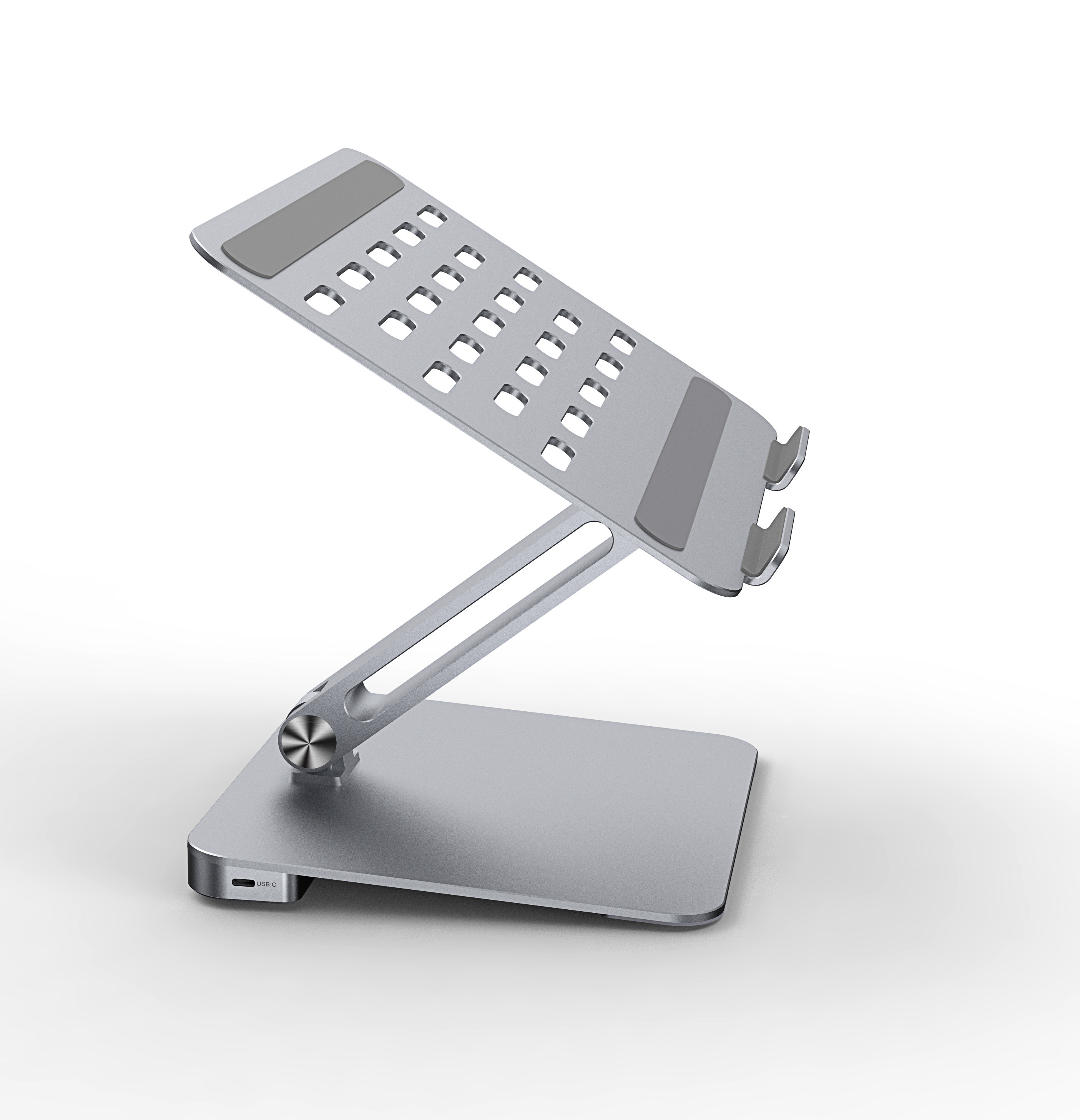

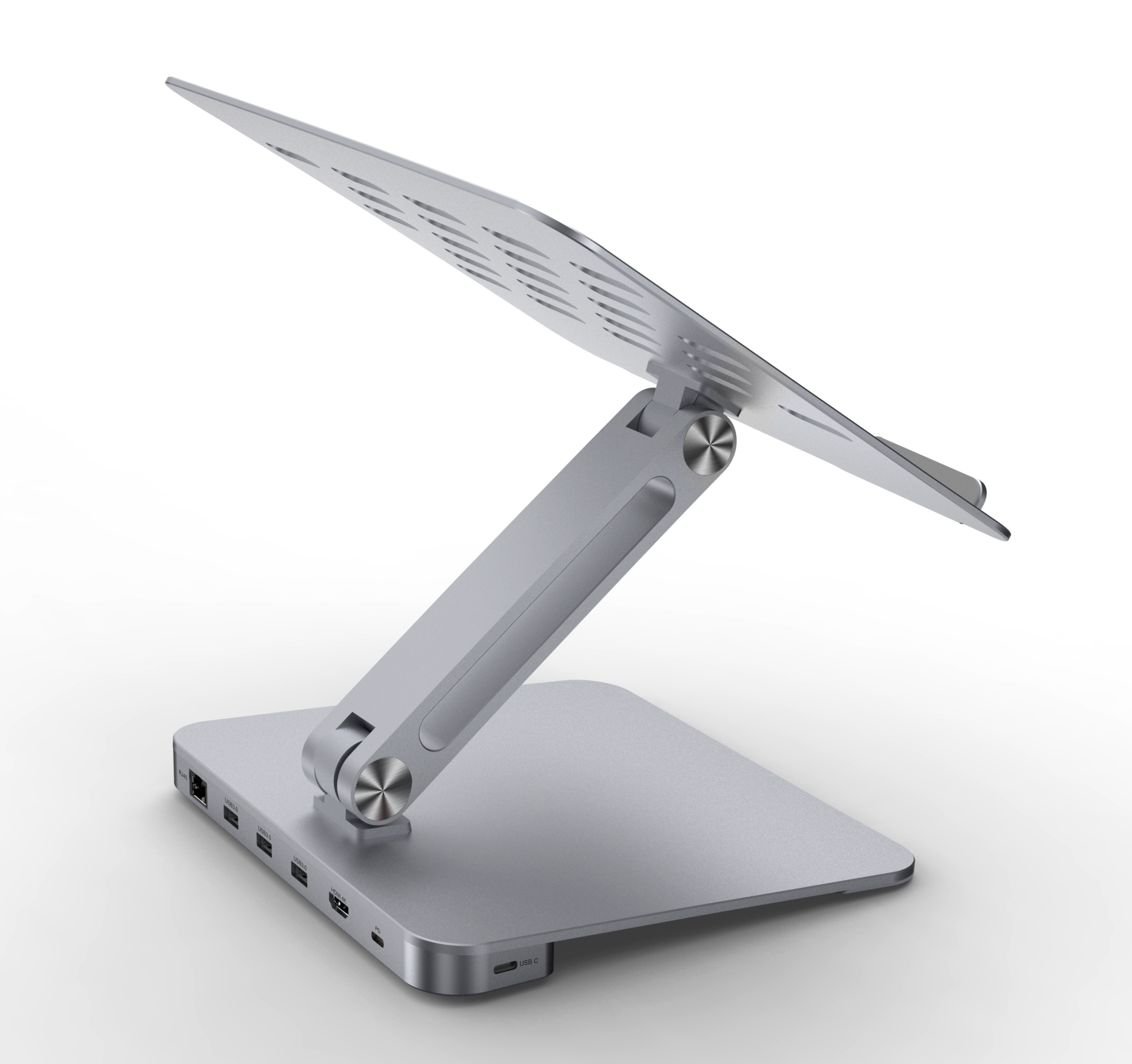

The variable Notebook/Tablet Stand with 6-port USB-C Docking Station combines ergonomic design and connectivity. The stand enables individual height and angle adjustment, perfectly adapted to the needs of the user. The docking station offers six ports to expand the connections (1x HDMI 2.0, 3x USB-A 3.0, 1x RJ45, 1x USB-C PD) of your notebook/tablet. Manufactured of high-quality aluminum, the stand features elegant and modern design along with high load-bearing capacity of up to 7.5 kg, and its own weight ensures additional stability. The design of the carrier plate was conceived to ensure additional heat dissipation for notebooks.
Instant Expansion with comprehensive functional ports:
-> 3xUSB 3.0 port(5Gbps)
-> 1x4K@60Hz HDMI
-> 1x RJ45(Gigabit)
-> 1x PD Charging(100W)

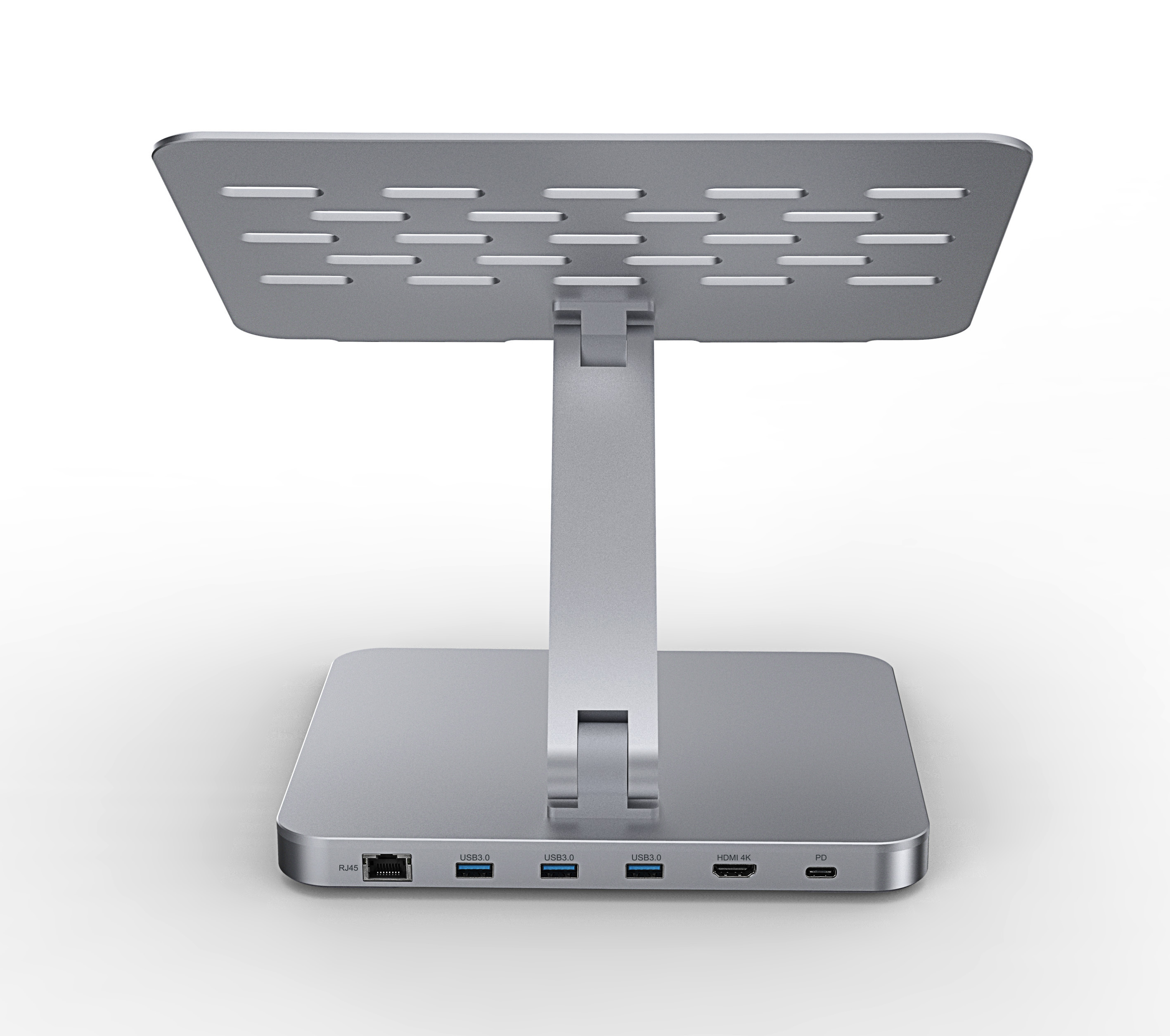

Connections:
- 3 x USB-A: for e.g. external hard drive, USB stick, mouse, keyboard, printer
- 1 x USB-C power: for e.g. PD charger, PD power supply unit, PD power pack
- 1 x HDMI: for connection to an e.g. monitor, TV or projector
- 1 x LAN/Ethernet: for e.g. cabled Internet / network connections
· Features 3 USB 3.0 ports and Type-C pass-through charging port, 3 port USB3.0 data transfer speed reach up to 5Gbps. 3-ports USB allow you connect various appliances like keyboards, mouse, USB flash drives, etc. to your type C devices
· 3 USB3.0 ports support BC 1.2 charging function, with an auto switching mode
· 1x HDMI supports up to 4K resolution video at 60Hz and 1920x1080 (1080p) at 60Hz. Delivering crystal clear, high quality video and audio. Perfect for presentations, movie nights and more.
· 1 Gigabit Ethernet port gives access to super fast network speed, backward compatible with 10/100 Ethernet.
· The PD Charging port quickly charge your notebook while simultaneously using other ports.
· Brushed aluminum finish complements your Apple accessories for a timeless and modern desk set up.
· Silicon pad protect product from slip and scratch, holds your notebook more stable.
· Heat dissipation design, free adjustable view angle and height.
· USB C Hub is built in the stand.
Product Feature
|
Folded Size |
257.3x 280x 56.3mm |
|
Weight |
Approx 1150g |
|
Loading Capacity |
7.5KG |
|
Hub Chipset |
IT6565/RTL8153/VL817S/VL103R/VL171 |
|
Cable Length |
60cm |
|
slope of top pivot |
180° |
|
slope of bottom pivot |
70° |
|
Operating voltage / current consumption |
5–20 V max. 5 A |
|
Compatibility |
Compatible with all USB C computers, USB- C smartphone and tablet with OTG support |
|
System requirements |
Windows 11 /10 /8/7 Mac OS 10.6 and above iPad OS 15.3.1 and above Chrome OS 46.0.2490.82 and above Android 7.0 and above |
|
USB specification |
USB C 3.1 Gen1 |
|
Operating Temperature |
0℃ to 40℃(35°F to 100°F) |
|
Operating Humidity |
20% RH to 80% RH |
How to Connect
• Switch on your computer and boot the system.
• Connect the product to a free USB port on your computer.
• You do not have to install drivers, the computer will automatically
recognize the product.
• If necessary, follow the instructions for your operating system.
• In order to use your devices, plug them into the product one after
the other.
Package content:
1x Notebook Stand Hub
1x USB C cable(60cm)
1 x Manual
