Model No.	WH3705B
Output	-1x USB-A Charging 2.4A -1x PD 20W -1x USB-C Charging 2.4A -4x USB-A 3.1(5G Data) -3x USB-C 3.1(5G Data)
Material	Aluminum
Cable Length	80cm

Model No. WH3705B

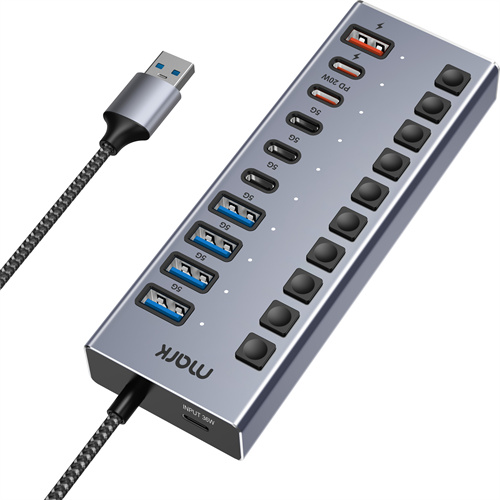

Aluminum USB 3.0 10-Port Hub with individual switch



Description



Instant Expansion with comprehensive functional ports:
- 4xUSB A 3.0 5G Port--(Transfer Speed 5Gbps)

- 3xUSB C 3.1 5G Port(Transfer Speed 5Gbps)

- 1x PD Charging(20W) - Current limitation 3.5Amp, support short-circuit protection

- 1x USB C Charging - Current limitation 4.5Amp, support short-circuit protection

- 1x USB A Charging - Current limitation 1.8Amp, support short-circuit protection



• 【Charging and Data Transfer】This 10 in 1 USB Hub instantly add 10USB ports extension to your notebook, desktop, smart TV or gaming host. Four Blue USB ports are USB 3.0 5G data ports. Plug and Play, Hot-swappable, syncing data transfer speeds up to 5Gbps. One PD output interface with smart fast charging function. One red USB and USB C smart fast-charging ports can automatically detect your device’s fast-charging protocol and charge your phone to over 50% in 30 minutes at speeds of up to 1 to 1.5 Amps.
• The quick charging port can automatically detects and delivers the optimal charging current to compatible devices, includes Apple and Android phones and tablets as well as cameras, consoles and more.



Note: To fulfill quick charging (The RED port), please make sure

1. Your devices support quick charging protocol.

2. Connect the hub with enclosed power adapter (in the box).



• 4 USB3.0 5G Data Ports

USB 3.0 Hub supports super-fast data transfer up to 5Gbps- 10X faster than USB 2.0 (480 Mbps), which allows you to transfer HD movies or files in seconds.



※ Backward compatible with USB 2.0, 1.1.

※ Data Ports also be able to perform normal charging when needed.



• 【Exquisite Appearance】The USB hub with power adapter is made of aluminum alloy, which is stylish and durable. The USB hub with switch also includes an LED light on each port do dedicate the current status.





• 【Individual On/Off Switches】Each of 10 ports has an On/Off switch with LED indicator, easy to show power status. No need to unplug devices after cutting off the hub's power and the switches maintain status once power is restored.



• 【A great traveling companion】
  It is securely protected by its solid body, easier to carry with a detachable cord. It is the best choice for your life and work office.



【Wide Compatibility 】

• Broad Compatibility USB Splitter: Compatible with Windows 2003 / XP / Vista / Win 7 / Win 8 / Win 10, Mac OS, Linux 9 and above, backward compatible with USB2.0 / 1.1 connections.





Connections:

• 4 x USB3.0: data transfer speed up to 5Gbps
• 3x USB C 3.1 Gen1: data transfer speed up to 5Gbps
• 1 x USB-C power: for e.g. PD charger, PD power supply unit, PD power pack
• 1 x USB-C Quick Charge Mobile Devices
• 1x USB-A Quick Charge Mobile Devices





Product Feature

Product Size(LxWxH)	150x50x23.5mm
Weight	350g
Chipset	RM1211+AW3410+SW3522+HUSB304 +HUSB305
Cable Length	120cm
Operating voltage / current consumption	12 V 3A
Compatibility	USB A port
System requirements	Windows 11 /10 /8/7 Mac OS, X, 10.x(and above) Linux
USB specification	USB 3.0 5Gbps
Operating Temperature	0℃ to 40℃(35°F to 100°F)
Operating Humidity	20% RH to 80% RH



How to Connect

Connect the adapter directly to your computer.

Connect your USB devices to any of the four USB ports.

Connect your USB C devices to any of the three USB C Data Ports.

Connect your mobile devices to RED ports for quick charging.

Easy to use and carry, hot swap supportable.

No extra driver required.



Note:You must plug in the power adapter to activate the quick charging port.
Devices that do not support quick charge protocol can only perform normal charging.
The Fast-charging ports DO NOT support data transfer.



Package content:
1 x 10-Port USB Hub
1 x Detachable 120cm USB Cable
1 x AC 36W Power Adapter(12V/3A)
1 x User Manual

Output:-1x USB-A Charging 2.4A -1x PD 20W -1x USB-C Charging 2.4A -4x USB-A 3.1(5G Data) -3x USB-C 3.1(5G Data) Material: Aluminum Cable Length: 80cm
