Model No.	WH3707
Input	USB-C
Output	-4x USB-A 3.0 5G Port(Transfer Speed 5Gbps) -3xUSB-C 3.1 5G Port(Transfer Speed 5Gbps) -2x PD Smart Charging(48W) -Current limitationmax. 4Amp, support smart charging(5V3A,9V3A,12V4A,15V3.2A,20V2.4A),support shortcircuitprotection -1x USB-A Charging -Qc3.0 15W with currentlimitation 3Amp, support short-circuit protection
Material	Aluminum/Plastic
Cable Length	120cm

Model No. WH3707

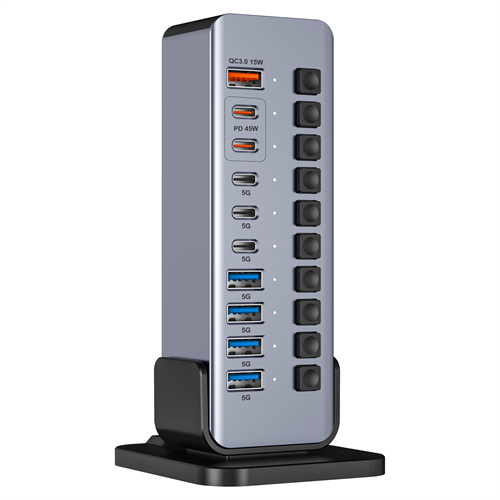

Aluminum USB C 3.1 10-Port Tower Hub with individual switch



Description

Instant Expansion with comprehensive functional ports:
- 4xUSB A 3.0 5G Port--(Transfer Speed 5Gbps)

- 3xUSB C 3.1 5G Port(Transfer Speed 5Gbps)

- 2x PD Smart Charging(48W) - Current limitation max. 4Amp,support smart charging (5V3A, 9V3A,12V4A,15V3.2A,20V2.4A), support short-circuit protection

- 1x USB A Charging - QC3.0 15W with current limitation 3Amp, support short-circuit protection

• 【Charging and Data Transfer】This 10 in 1 USB Hub instantly add 10 USB ports extension to your notebook, desktop, smart TV or gaming host. Four Blue USB ports are USB 3.0 5G data ports. Plug and Play, Hot-swappable, syncing data transfer speeds up to 5Gbps. Two USB C PD output interfaces with smart fast charging function. One red USB and two USB C smart fast-charging ports can automatically detect your device’s fast-charging protocol and charge your phone to over 50% in 30 minutes at speeds of up to 1 to 4 Amps.
• The quick charging port can automatically detects and delivers the optimal charging current to compatible devices, includes Apple and Android phones and tablets as well as cameras, consoles and more.

Note: To fulfill quick charging (The RED port), please make sure

1. Your devices support quick charging protocol.

2. Connect the hub with enclosed power adapter (in the box).

The current distribution of a simultaneous charging:

USB C 1 Port: 18W

USB C 2 Port: 18W

USB A 1 Port: 15W

• 4 USB3.0 5G Data Ports

USB 3.0 Hub supports super-fast data transfer up to 5Gbps- 10X faster than USB 2.0 (480 Mbps), which allows you to transfer HD movies or files in seconds.



※ Backward compatible with USB 2.0, 1.1.

※ Data Ports also be able to perform normal charging when needed.



• 【Exquisite Appearance】The USB hub with power adapter is made of aluminum alloy, which is stylish and durable. The USB hub with switch also includes an LED light on each port do dedicate the current status.

• 【Individual On/Off Switches】Each of 10 ports has an On/Off switch with LED indicator, easy to show power status. No need to unplug devices after cutting off the hub's power and the switches maintain status once power is restored.
• 【A great traveling companion】
  It is securely protected by its solid body, easier to carry with a detachable cord. It is the best choice for your life and work office.

【Wide Compatibility 】

• Broad Compatibility USB Splitter: Compatible with Windows 2003 / XP / Vista / Win 7 / Win 8 / Win 10, Mac OS, Linux 9 and above, backward compatible with USB2.0 / 1.1 connections.

Connections:

• 4 x USB3.0: data transfer speed up to 5Gbps
• 3x USB C 3.1 Gen1: data transfer speed up to 5Gbps
• 2 x USB-C Quick Charge Mobile Devices
• 1x USB-A Quick Charge Mobile Devices

Product Feature

Product Size(LxWxH)	152x80x70mm
Weight	350g
Chipset	RM1211+SW3516+AW3410
Cable Length	120cm
Operating voltage / current consumption	20V 3A
Compatibility	USB C port
System requirements	Windows 11 /10 /8/7 Mac OS, X, 10.x(and above) Linux
USB specification	USB 3.0 5Gbps
Operating Temperature	0℃ to 40℃(35°F to 100°F)
Operating Humidity	20% RH to 80% RH



How to Connect

Connect the adapter directly to your computer.

Connect your USB devices to any of the four USB ports.

Connect your USB C devices to any of the three USB C Data Ports.

Connect your mobile devices to RED ports for quick charging.

Easy to use and carry, hot swap supportable.

No extra driver required.



Note:You must plug in the power adapter to activate the quick charging port.
Devices that do not support quick charge protocol can only perform normal charging.
The Fast-charging ports DO NOT support data transfer.



Package content:
1 x 10-Port USB C Tower Hub
1 x120cm USB C Cable
1 x AC 60W Power Adapter(20V/3A), Power Cord Length 180cm
1 x User Manual

Input:USB-C Output:-4x USB-A 3.0 5G Port(Transfer Speed 5Gbps) -3xUSB-C 3.1 5G Port(Transfer Speed 5Gbps) -2x PD Smart Charging(48W) Current limitationmax. 4Amp, support smart charging(5V3A, 9V3A,12V4A,15V3.2A,20V2.4A),support shortcircuitprotection -1x USB-A Charging -Qc3.0 15W with currentlimitation 3Amp, support short-circuit protection Material: Aluminum/Plastic Cable Length: 120cm
