| Model No. | WH5001B |
| Input | USB-C |
| Output | -1xHDMl resolution up to 4K@60HZ -2xUSB3.0 Ports(5Gbps) -1xUSB-C 3.1(5Gbps) -1xSD(Transfer Speed 5Gbps) -1x Micro SD(Transfer Speed 5Gbps) -1xAudio/Mic--(3.5mm) microphone and headphone -1xUSB-C female charging port(20V/5A, 100W) |
| Material | Aluminum |
Model No: WH5001B
8 in 1 Keyboard Hub
Description
Instant Expansion with comprehensive functional ports:
-> 2xUSB 3.0 port--(Transfer Speed up to 5Gbps)
-> 1xUSB-C 3.1 port--(Transfer Speed up to 5Gbps)
-> 1x4K HDMI--(max. 4K/60 Hz)
-> 1x PD Charging--(20V/5A, 100W)
-> 1x Micro SD--(Transfer Speed 5Gbps)
-> 1x SD--(Transfer Speed 5Gbps)
-> 1x Audio/Mic--(3.5mm)

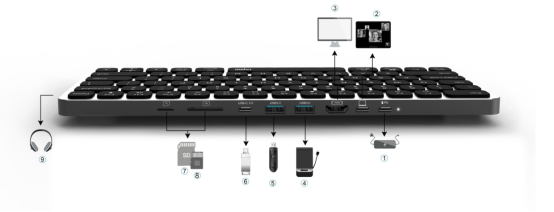

Connections:
1 Type-C Charging Adapter
2 Tablets/Smart Phones
3 HDMI Display 4K@60 Hz
4 Hard Disk
5 USB Stick
6 USB C flash drive
7 SD Memory Cards(simultaneous use is possible)
8 Headphones/Microphone
· This keyboard enables you to utilize your notebooks or tablets even more conveniently and compact.
· Supported devices: MacBooks, Notebooks, Tablets and more USB C devices with Power Delivery protocol.
· Compact 78 keys, with backlight keys allows you work in dark area.
· Featuring enhanced scissor-switch keys and premium aluminium design.
· Features 2 USB 3.0 and 1 USB-C 3.1 ports, data transfer speed reach up to 5Gbps, you can connect various appliances like keyboards, mouse, USB flash drives, etc. to your USB C devices
· Crystal-clear 4K HDMI Output: make your life more colorful - mirror or extend your screen with the USB C adapter's HDMI port and directly stream 4K UHD or full HD 1080P video to HDTV, monitors, or projectors for a cinema-like visual feast.
· SD & Micro SD can be read simultaneously
Supported cards:
SD Slot: SD, SDXC, SDHC,
Micro SD Slot: Micro SD(TransFlash), Micro SDHC
· Supports Power Delivery 3.0(100W max.) to quickly charge your USB C laptop while simultaneously using other ports.
· Brushed aluminum finish complements your Apple accessories for a timeless and modern desk set up.
Product Feature
|
Product Size |
296.4x 127.6x 13.4mm |
|
Weight |
205g |
|
Hub Chipset |
BYK901+GL3510+GL3224+LT8711UXD |
|
Cable Length |
60cm |
|
Operating voltage / current consumption |
5–20 V max. 5 A |
|
Compatibility |
USB C port |
|
System requirements |
Windows 11 /10 /8/7 Mac OS 10.8 ≥ |
|
USB specification |
USB 3.2 Gen1 |
|
Operating Temperature |
0℃ to 40℃(35°F to 100°F) |
|
Operating Humidity |
20% RH to 80% RH |
How to Connect
• Switch on your computer and boot the system.
• Connect the keyboard directly to your computer through attached 60cm USB C cable, the keyboard light on and work.
• Connect your USB devices to any of the USB ports.
• You do not have to install drivers, the computer will automatically
recognize the product.
• If necessary, follow the instructions for your operating system.
• In order to use your devices, plug them into the product one after
the other.
Package content:
1x Keyboard Hub
1x USB C cable
1 x Manual
