| Model No. | WH7332 |
| Input | USB-C |
| Output | -2xUSB 3.0 port(Transfer Speed 5Gbps) -1x SD 3.0-1x HDMI(max. 4K/30 Hz) -1x Micro SD 3.0 -1x PD3.0(100W) |
| Material | Aluminum |
Model No: WH7332

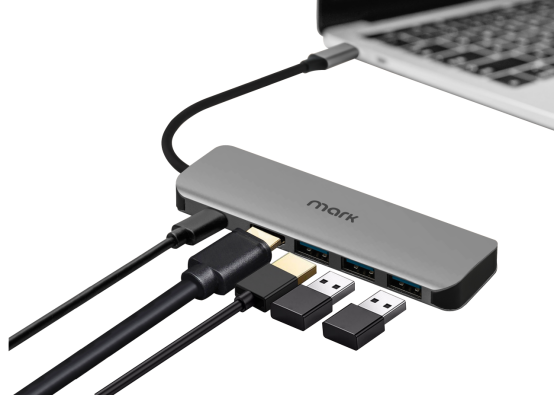

6 in 1 USB-C Hub
2x USB3.0, 1x 4K HDMI, 1x PD Charging, 1x SD, 1x Micro SD
Description
Instant Expansion with comprehensive functional ports:
-> 2xUSB 3.0 port
-> 1xPD charging port
-> 1x4K HDMI
-> 1xSD
-> 1xMicro SD
· Supported devices(partial): 2016/2017/2018 MacBook Pro, 2015/2016/2017 MacBook, ChromeBook, ASUS Transformer 3 Pro, Dell XPS 12 9365 and newer, HP Elite X2, Spectre x360 13, 15, Pro Convertible, Huawei Matebook, Lenovo IdeaPad 720s, ThinkPad T470, T570, X1 Yoga, 720, 920, Microsoft Surface Book 2 and Pro, Razer Blade Stealth, Samsung Galaxy Tab Pro S and more USB-C devices with Power Delivery protocol
- 3 USB-A ports for easy expansion. With USB3.0 specification, the data transfer rate up to 5Gbps. Backward compatible with USB2.0/1.1.
- With the USB-C Power Delivery (USB PD) port, supporting maximum 100W/20V5A charging to your upstream computer including MacBook Pro 2019.
- USB PD power actual output depends on your power adapter.
- Support HDMI2.0 at 4K@30Hz Ultra HD video output, with HDCP2.2 specification.
- USB-C connector allows you to connect with USB-C equipped computer, tablet and smartphone, which equipped with Thunderbolt 3 port or USB-C port that supports data transfer function and DisplayPort Alt Mode (DP Alt Mode).
- · SD &Micro SD can be read simultaneously
- Supported cards:
- SDSlot: SD, SDXC, SDHC,
- Micro SD Slot: Micro SD(Trans Flash), Micro SDHC
- Fast charging with BC1.2 technology, provides up to 5V1.5A of power per each USB-A port.
- Plug and play, no driver required.
How to Connect
• Switch on your computer and boot the system.
• Connect the product to a free USB C port on your computer.
• You do not have to install drivers, the computer will automatically
recognize the product.
• If necessary, follow the instructions for your operating system.
• In order to use your devices, plug them into the product one after
the other.
Product Feature
|
Product Size |
110 x 34 x 12mm |
|
Weight |
65g |
|
Cable Length |
15cm |
|
Chipset |
GL3510/VL102/GL3224 |
|
Operating voltage / current consumption |
5–20 V max. 5 A |
|
Compatibility |
USB C port |
|
System requirements |
Windows 11 /10 /8/7 Mac OS 10.8 ≥ |
|
USB specification |
USB 3.1 Gen2 |
|
Operating Temperature |
0℃ to 40℃(35°F to 100°F) |
|
Operating Humidity |
20% RH to 80% RH |
Package content:
1x USB Type-C Multi-Port Hub
1 x Manual
