| Model No. | WH7339 |
| Input | USB-C |
| Output | -2x USB 3.0 port(5Gbps) -1x USB2.0 Port(480Mpbs) -1x HDMI(max.4K/30 Hz) -1x RJ45(100Mbps)-1x PD 3.0(100W) -1x Micro 3.0 -1x SD 3.0 |
| Material | Aluminum |
| System requirements | Windows 11 /10 /8/7Mac OS 10.8 ≥ |
Model No: WH7339

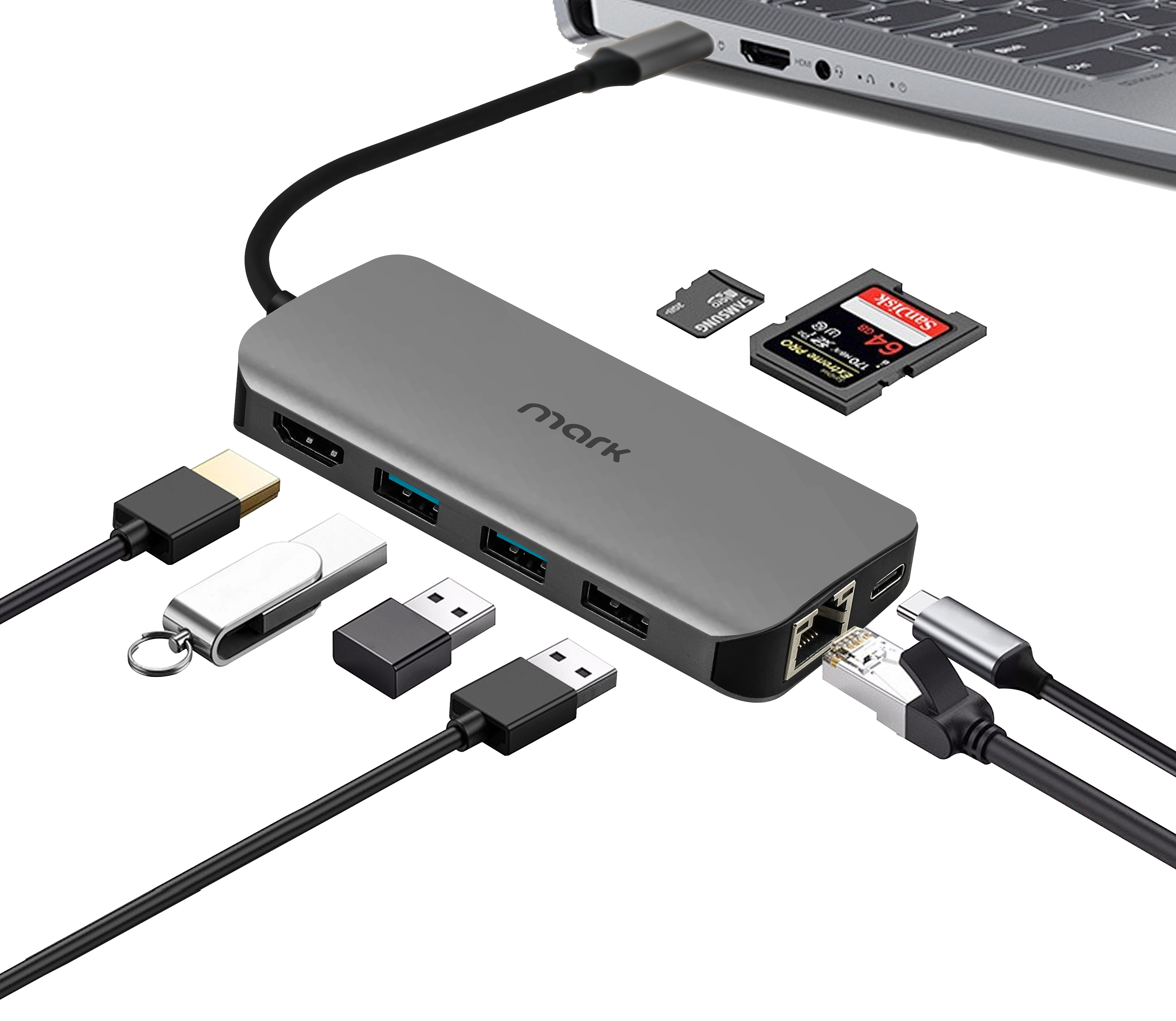

8 in 1 USB C 3.1 Hub
Description
Instant Expansion with comprehensive functional ports:
-> 2xUSB 3.0 Port(5Gpbs)
-> 1xUSB2.0 Port(480Mbps)
-> 1xHDMI 4K@30Hz
-> 1x RJ45 LAN(1000Mbps)
-> 1x PD Charging(20V/5A, 100W)
-> 1x Micro SD(3.0)
-> 1x SD(3.0)
- Expands one USB C Port on your host device to two USB3.0 Ports and one USB2.0 Port - perfect for easy data transfer with speeds up to 5Gbps,
It allows you connect various appliances like keyboards, mouse, USB flash drives, etc. to your type C devices.
- Reliable and Super-speed Data Syncing: Compliant with USB 3.1 Gen 1 data transfer rate up to 5Gbps, super speed and save your time.
- 2 USB3.0 ports support BC 1.2 charging function, with an auto switching mode
- 1x HDMI supports up to 4K resolution video at 30Hz and 1920x1080 (1080p) at 60Hz. Delivering crystal clear, high quality video and audio. Perfect for presentations, movie nights and more.
- 1 gigabit ethernet port gives access to super fast network speed, backward compatible with 10/100 ethernet.
- The PD Charging port quickly charge your notebook while simultaneously using other ports.
- Brushed aluminum finish complements your Apple accessories for a timeless and modern desk set up.
How to Connect
• Switch on your computer and boot the system.
• Connect the product to a free USB port on your computer.
• You do not have to install drivers, the computer will automatically
recognize the product.
• If necessary, follow the instructions for your operating system.
• In order to use your devices, plug them into the product one after
the other.
Product Feature
|
Product Size |
120 x 50 x 18mm |
|
Weight |
78g |
|
Hub Chipset |
CH7210C/GL3510/GL3224/RTL8153/SL2.2S |
|
Cable Length |
20cm |
|
Operating Voltage / Current |
5–20 V max. 5 A |
|
Compatibility |
Compatible with all USB C computers, USB- C smartphone and tablet with OTG support |
|
System requirements |
Windows 11 /10 /8/7 Mac OS 10.6 and above iPad OS 15.3.1 and above Chrome OS 46.0.2490.82 and above Android 7.0 and above |
|
USB specification |
USB C 3.1 Gen1 |
|
Operating Temperature |
0℃ to 40℃(35°F to 100°F) |
|
Operating Humidity |
20% RH to 80% RH |
Package Content:
1x 8 in 1 USB C 3.1 Hub
1 x User Manual
