Model No. WH2312

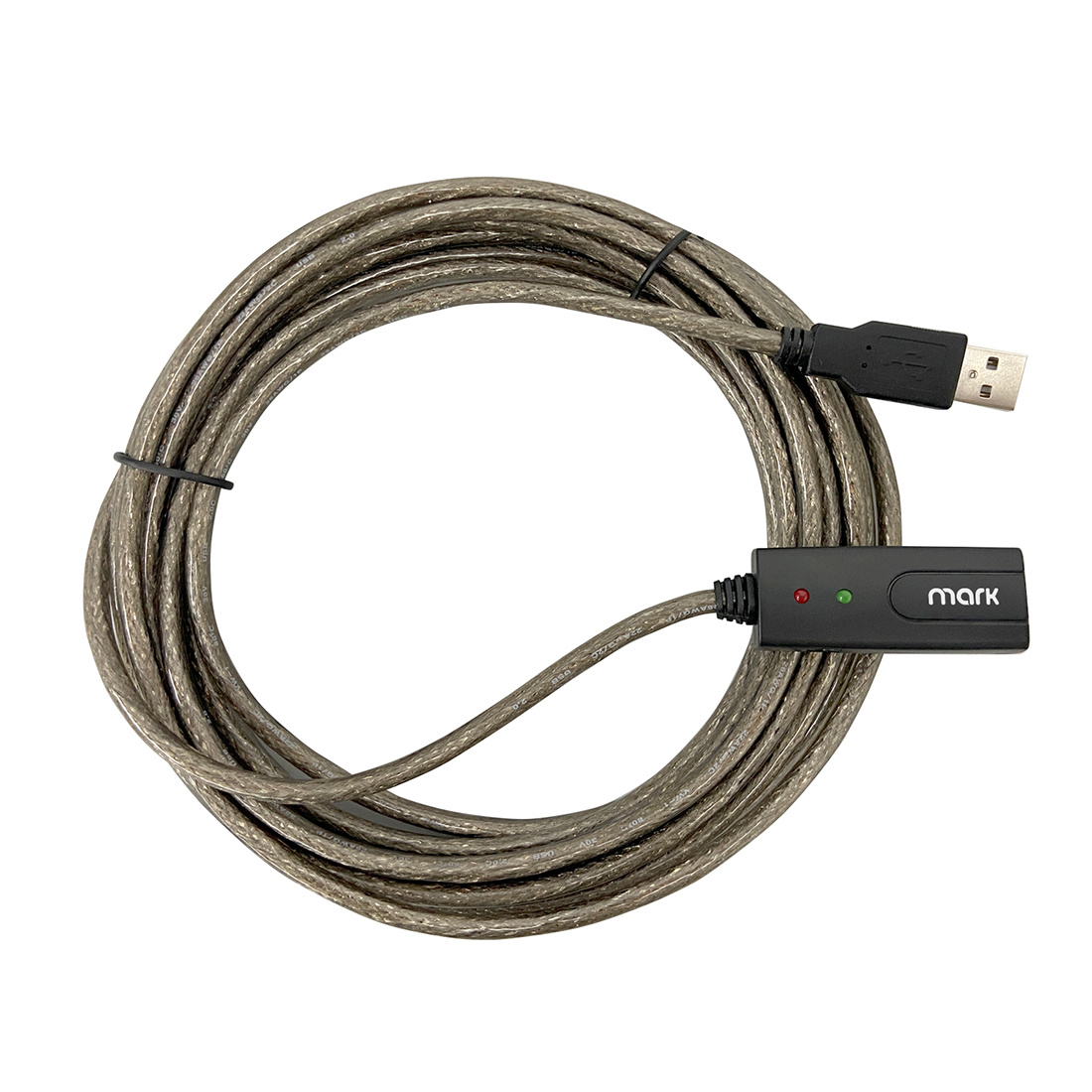

USB2.0 5M/10M/15M/20M Extension Cable
Description
This product allows users to extend the distance between the computer and USB devices
up to 15/20/25m. USB signal transmitted through them to maintain optimal signal integrity
and meet USB 2.0 standard.
Characteristic:
Support data transfer rate: High-Speed USB (480Mbps);
Compliant with specification USB2.0;
Active USB extension cable, ensure good signal quality to meet USB specification
Available for USB port
USB A-M is to connect with computer; USB A-F is for device;
Hot swappable, plug and play, no driver required;
Support system: XP/Vista/Win7/8/8.1/10, Mac OS 10.x
Using:
1. Startup computer, wait computer enter into operation system,
make sure the USB port on the computer is ok
2. Connect the USB A MALE of the USB extension cable to the USB port on the computer,
computer will automatic defect the USB device. My computer-properties-Device
manager-universal serial bus controllers you can see “Generic USB HUB” on your computer.
3. Connect USB external Device to USB A Female of our USB extension cable.

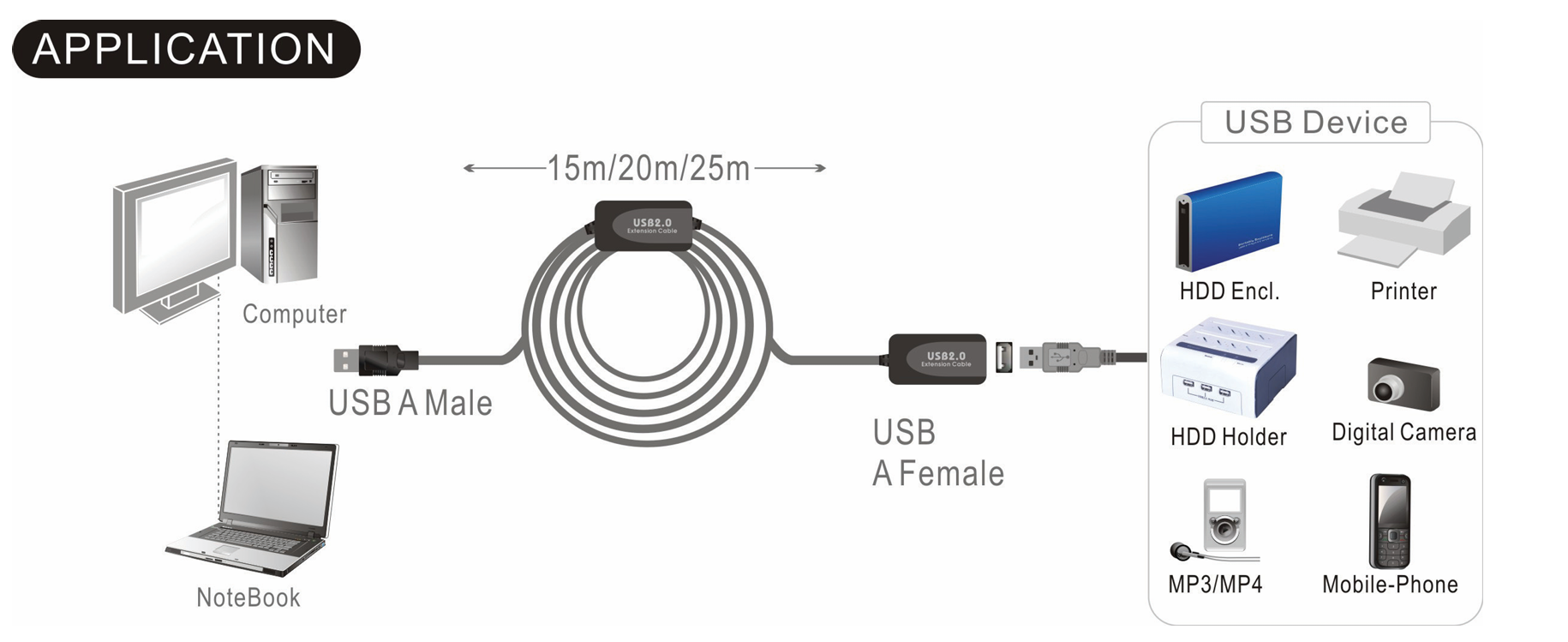

4. Connection diagram as follow:
How to connect
·Connect the adapter directly to your computer
·Connect your USB devices to the USB port
·No extra software drivers needed
Supported Systems:
• Windows (32/64 bit) 10 / 8.1 / 8 / 7 / Vista / XP, Mac OS X 10.6 to 10.9, Linux 2.6.14 or above.
Product Feature
1: Chipset FE1.1S
2: Material Plastic Housing
3: Cable Length 5M/10M/15M/20M
4: Color gray housing+black cable
5: Operating Temperature: 0℃ to 40℃(35°F to 100°F)
6: Operating Humidity: 20% RH to 80% RH
Package content
1 x 5M/10M/15M/20M USB2.0 extension cable
Keywords
USB Extension Cable with LED WH2312
USB Extension Cable with LED WH2312
