| Model No. | WH2317 |
| Details | • Compatible with USB2.0 Specification. • Supports High-Speed data transfer rates up to 480Mbps. • USB 2.0 active repeater with premium cable. • Standard USB Type A male to type A female connectors. • Connect to remote USB printers, speakers, scanners, USB display adapters, keyboards/mice. |
Model No. WH2317

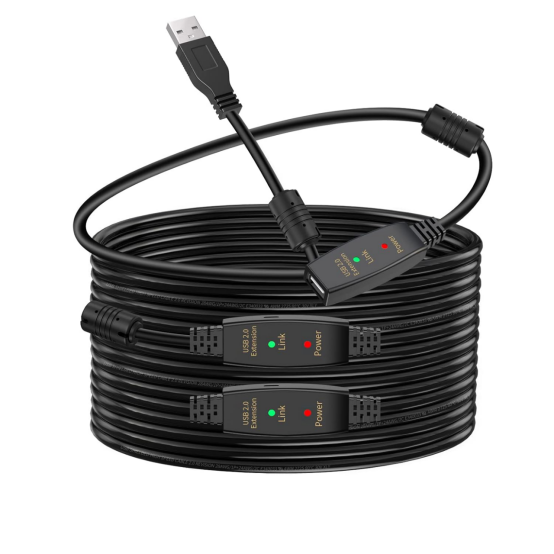

USB2.0 5M/10M/15M/20M Extension Cable
Description
【USB Extension Cable Type】Connector 1: Type A is male, connector 2: Type B is Female
• 【Fast Data Transfer】USB 2.0 Extension Cable High Speed, the transfer rate up to 480Mbps

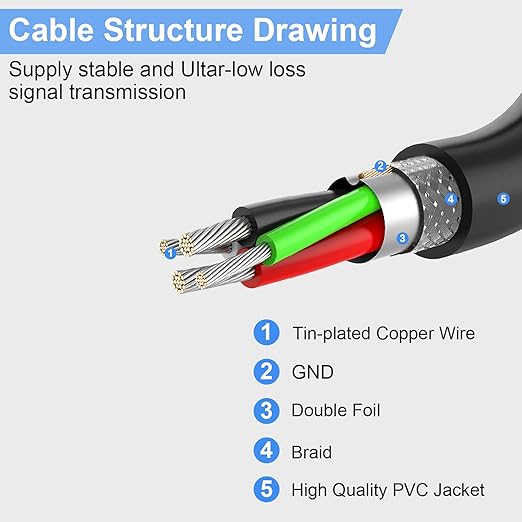

• Multilayer Shielding】 Corrosion resistant tin-plated bare cooper conductors, and Al foil with braid shielding keeps the maximum conductivity and minimize data loss for the data extension process
• 【Wide Compatibility】USB 2.0 A Male to A Female Extension cable compatibility with Oculus VR, Xbox, Card Reader, USB Flash Drive ,USB Hub, Hard Drive, Mouse, Keyboard, Printer, Scanner, Camera, Surveillance camera and more, Backwards compatible with USB 2.0,USB 1.1&USB 1.0 standard devices
-The standard 2.0 connector provides excellent electrical conductivity, making the high-speed data transmission fast and the new full cover design of female header, which is conducive to the protection of USB interface and durable.
-USB 2.0 extension cable providing up to 480Mbps data transmission rate; Data conductor twisted-pair (impedance matching) to minimize cross communications tampering of data line signals; stretch PVC Jacket: flexible and smooth, bending/wear resistant, durable.
-All the conductive wire cores are made of high-quality tin-plated oxygen-free copper (OFC), which increases the signal transmission surface and anti-oxidation, and the service life is 50 times higher than ordinary products.
-The conductive wire is made of aluminum foil and braided mesh with double layer shield, which has stronger anti-interference ability and more stable signal transmission.
Wire Twisting
-Unique signal wire pair twisting method is adopted to increase signal transmission stability
OD & Wire Material
-The cable diameter is 5±0.5 mm, the conductor inside is OFC (Oxygen Free Copper), the touch feeling of PVC Jacket is soft and smooth
Application:
-Suitable for connection between hard disk boxes, Blu-ray optical drives, printers and other devices with USB interface.
Scope of use:
-Family, study, living room, bedroom, office, business, meeting, education, entertainment, etc.
Installation
-Free drive -No drivers required on any OS, including Windows, Mac OS, Linux, Chrome OS, etc.
-Please ensure compatibility and correct operation of all connected equipment before the cable is installed.
-Please hold the connectors by hand to plug and unplug, avoid drawing the wire itself directly.
Product Feature
1: Chipset FE1.1S
2: Material Plastic
3: Cable Length 5M/10M/15M/20M
4: Color black housing+black cable
5: Operating Temperature: 0℃ to 40℃(35°F to 100°F)
6: Operating Humidity: 20% RH to 80% RH
Package content
1 x USB2.0 extension cable
Keywords
USB2.0 Extension Cable with LED WH2317
USB2.0 Extension Cable with LED WH2317
