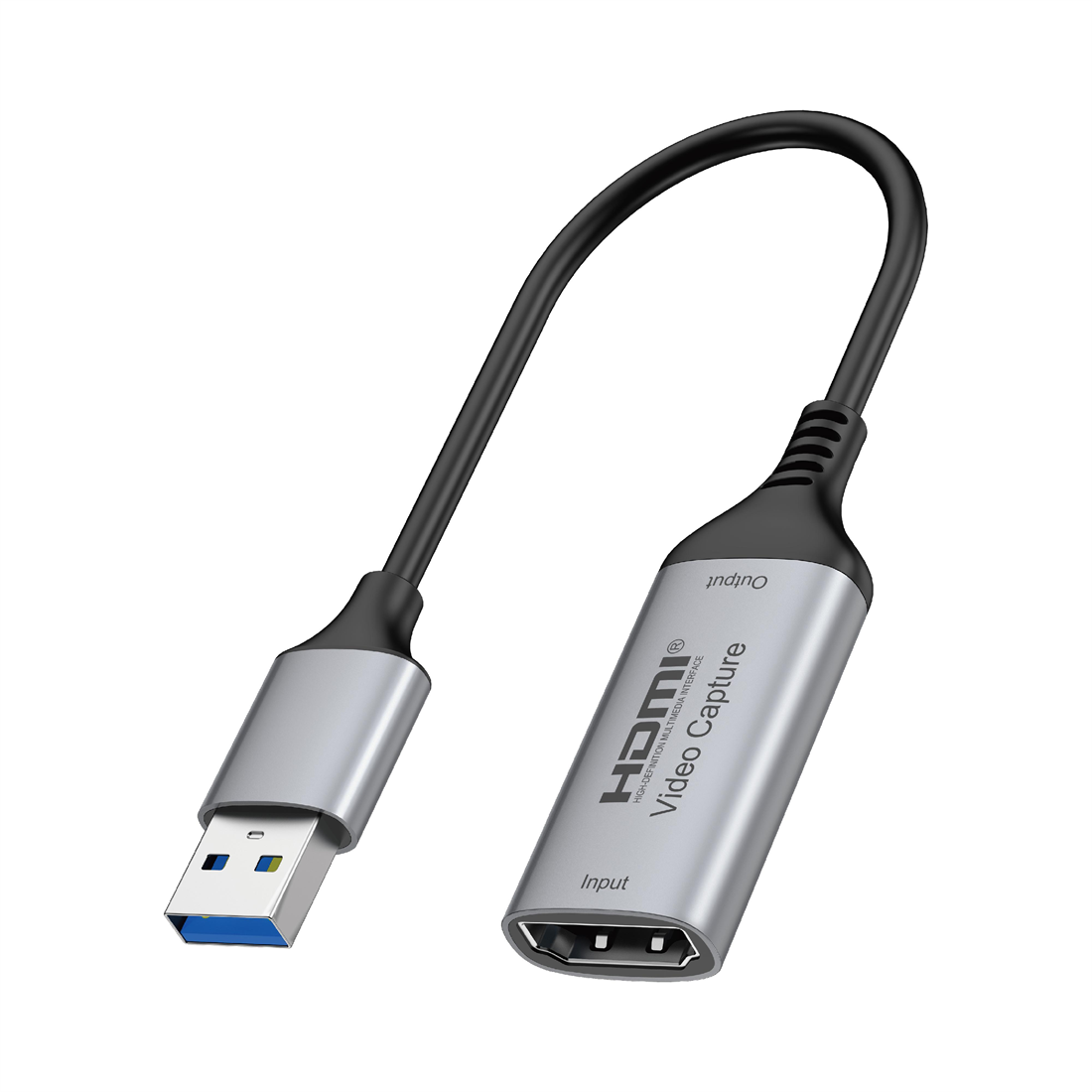

Model No. WH7706
USB3.0 to HDMI Capture Card


Description

     【1080P 60FPS Video Capture Card】 This HDMI game capture card is based on USB3.0  high  speed  transmission   port,   input  resolution  up  to  4K@30HZ,   output resolution up to 1920 × 1080@60Hz. The USB interface can meet most of the devices in daily  life.  Easily  meet the  online  capture,  real-time  recording, online  meetings,  live gaming and other functions, so you have a better visual enjoyment

    【Ultra Low Latency Screen Sharing】 HDMI capture card is made of good quality aluminum alloy with strong heat dissipation, allowing you to enjoy ultra low latency while live gaming or video recording or live streaming, avoiding blue screens and lag. This HDMI to USB3.0 capture card supports easy recording of good quality audio or HD video and transferring it to your computer or streaming platform, allowing you to record 60 fps HD video directly on your hard drive and real-time preview

    【Plug and Play, Easy to Carry】 This HDMI 1080P video capture card does not require  any  additional drivers  or external  power supply, just  plug  and  play for fast capture. The capture card is small and lightweight, so you can put it in your bag for emergencies, making it very portable for outdoor live streaming. It's also a great way to share content in game recording, video conference and online teaching

    【Wide Compatibility USB Capture Card】 Easily streams to Facebook, Youtube or Twitch. With the connection, this HDMI to USB 3.0 video capture devices can be working on several Operating Systems and various software: Windows 7/ 8/ 10, Mac OS or above, Linux, Android, Laptop, Xbox One, PS3/PS4/PS5, Camera, Webcame, DSLR, Switch, TV BOX, HDTV, Potplayer/VLC, ZOOM, OBS Studio etc.





How to connect
- Directly connect the adapter to the host device
- A HDMI cable is required
Noted:
1. Ensure the input and output ports are connected to the correct devices.
Incorrect connections may result in no signal
 2. If you are using a converter, such as an HDMI-to-USB-C adapter, please ensure
that your converter supports signal output functionality. If it does not, signal output will
not be possible
4. Please ensure that the signal output device you are connecting, such as a
camera, supports signal output or has the signal output setting enabled. Otherwise, no
video will be captured
6. There may be a slight delay in the capture, but it is within an acceptable
millisecond range and does not affect the video quality. Please ensure your system is  within the compatibility range. Some products may require disabling HD CP settings to function properly
 7. The product supports 4K input, but only 1080P output. Please ensure that the
cable you are using supports the corresponding resolution, such as 1080P or 4K, to
ensure optimal video quality
 8. Please ensure that your computer settings are configured correctly to capture
audio. A setup guide is available in the documentation on the page. Please note that
video capture does not support stereo sound
 9. Ensure all cables are properly connected and functioning. Make sure the output
format is compatible with the capture card. After checking everything, try reconnecting
the devices and resetting the software. If "no signal" persists, try using a different APP

Product Feature



Product Size

11x23x240mm

Weight

25g

Chipset

MS2130

Cable Length

12cm

Compatibility

USB3.0 A port

Operating voltage / current consumption

5V

max. 900mA

System requirements

Windows 11 / 10 /8/7 Mac OS 10.8 ≥

USB specification

USB3.0

Operating Temperature

0℃ to 40℃(35°F to 100°F)

Operating Humidity

20% RH to 80% RH



Package content

1x USB3.0 to HDMI Capture Card 1x User Manual
